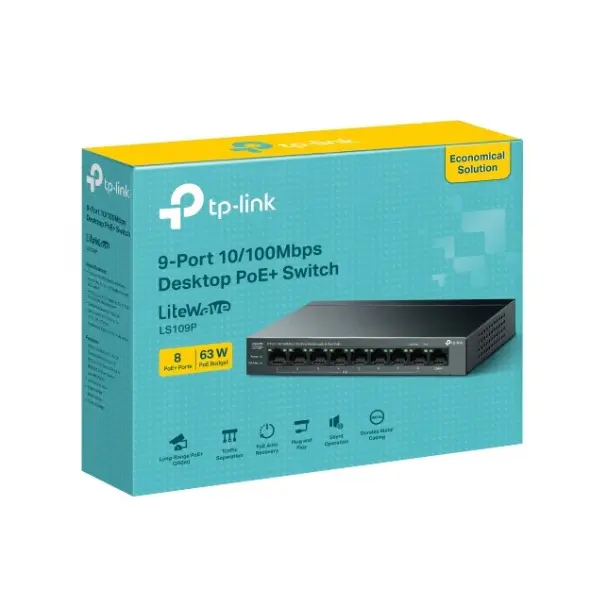

TP-Link ​LS109P PoE+ Switch, 9-Port 10/100Mbps

TP-Link ​LS109P

PoE+ Switch, 9-Port 10/100Mbps

Smart Power and Network in One Compact Device

The TP-Link LS109P is a reliable 9-port PoE+ desktop switch designed to deliver both data and power through a single Ethernet cable. It is ideal for small offices, shops, homes, and surveillance systems that require stable networking with minimal setup. With 8 PoE+ ports and 1 uplink port, this switch simplifies network expansion while keeping installation clean and cost-effective.

8 PoE+ Ports with a Powerful 63W Budget

This PoE+ switch supports IEEE 802.3af/at standards, allowing it to power devices such as IP cameras, wireless access points, and IP phones without additional power adapters. The total PoE budget is 63W, with up to 30W per port, making it suitable for high-power PoE devices. This reduces cable clutter and lowers installation costs, especially in professional environments.

Extended PoE Mode for Long-Distance Deployments

The Extend Mode feature enables PoE data and power transmission up to 250 meters, far beyond the standard 100 meters. This makes the TP-Link LS109P an excellent choice for outdoor cameras, warehouses, parking areas, and large properties. In Extend Mode, port speed adjusts to 10 Mbps to maintain stable long-distance performance, which is more than sufficient for IP surveillance applications.

PoE Auto Recovery for Non-Stop Network Operation

To ensure continuous performance, the switch includes PoE Auto Recovery technology. If a PoE-powered device becomes unresponsive, the switch automatically detects the issue and reboots the affected port. This feature is especially valuable for security cameras and access points installed in hard-to-reach locations, reducing maintenance time and avoiding manual resets.

Isolation Mode for Improved Network Security

The Isolation Mode enhances network stability and security by separating traffic between PoE ports with a single switch action. This prevents unauthorized access, network snooping, and broadcast storms. It is an essential feature for surveillance systems and business networks where data protection and consistent performance are critical.

Silent Fanless Design with Durable Metal Housing

The TP-Link LS109P features a fanless design, ensuring silent operation in noise-sensitive environments such as offices, homes, and meeting rooms. The metal casing improves heat dissipation and protects the internal components, increasing durability and long-term reliability. This design also helps reduce power consumption while maintaining stable performance.

Plug and Play Setup with Flexible Installation

This desktop PoE switch is built for true plug-and-play use, requiring no configuration or technical expertise. Simply connect your devices and start working instantly. The compact size allows for desktop placement or wall mounting, making it easy to integrate into any workspace or network layout.

Intelligent Power Management and Energy Efficiency

With smart power management, the switch automatically adjusts power output based on connected devices and cable length. Unused ports consume no power, helping reduce electricity costs. The TP-Link LS109P complies with green Ethernet technology, making it an energy-efficient solution for businesses and home users seeking lower operational expenses.

Advanced Switching Performance and Network Stability

The switch supports MAC address auto-learning and auto-aging, ensuring efficient traffic handling. IEEE 802.3x flow control prevents packet loss during heavy traffic, maintaining smooth data transmission. These features ensure stable network performance even when multiple devices are connected simultaneously.

Compact, Reliable, and Ready for Any Environment

Designed to operate in temperatures from 0°C to 40°C, the TP-Link LS109P is suitable for various indoor environments. Its compact dimensions (171 × 98 × 27 mm) allow installation in tight spaces. The package includes the switch, power adapter, installation guide, and rubber feet, and it meets CE, FCC, and RoHS certifications for safety and environmental compliance.
